Middle High Pressure Rotary Screw Air Compressors for Pneumatic (132kw, 30bar)
GooDSeaA 2-stage Oil-injected rotary screw air compressors provide a reliable air supply of up to 20-30bar for high-pressure applications in the toughest working conditions, for example Bottle blowing (PET), Pharmaceutical industry, Food industry, Rubber tire manufacturing, Hydropower, Well drilling, Military, Biological and Chemical industry and many more applications.
Features & Benefits
Cooling of valve heads reduces thermal load: For minimum wear
Installation even under the most difficult ambient conditions: Thanks to dedicated water cooling of the compressor block
Low compression temperatures and operating temperatures: thanks to a multi-stage compression process
Fully equipped: with soft starting and Inverter

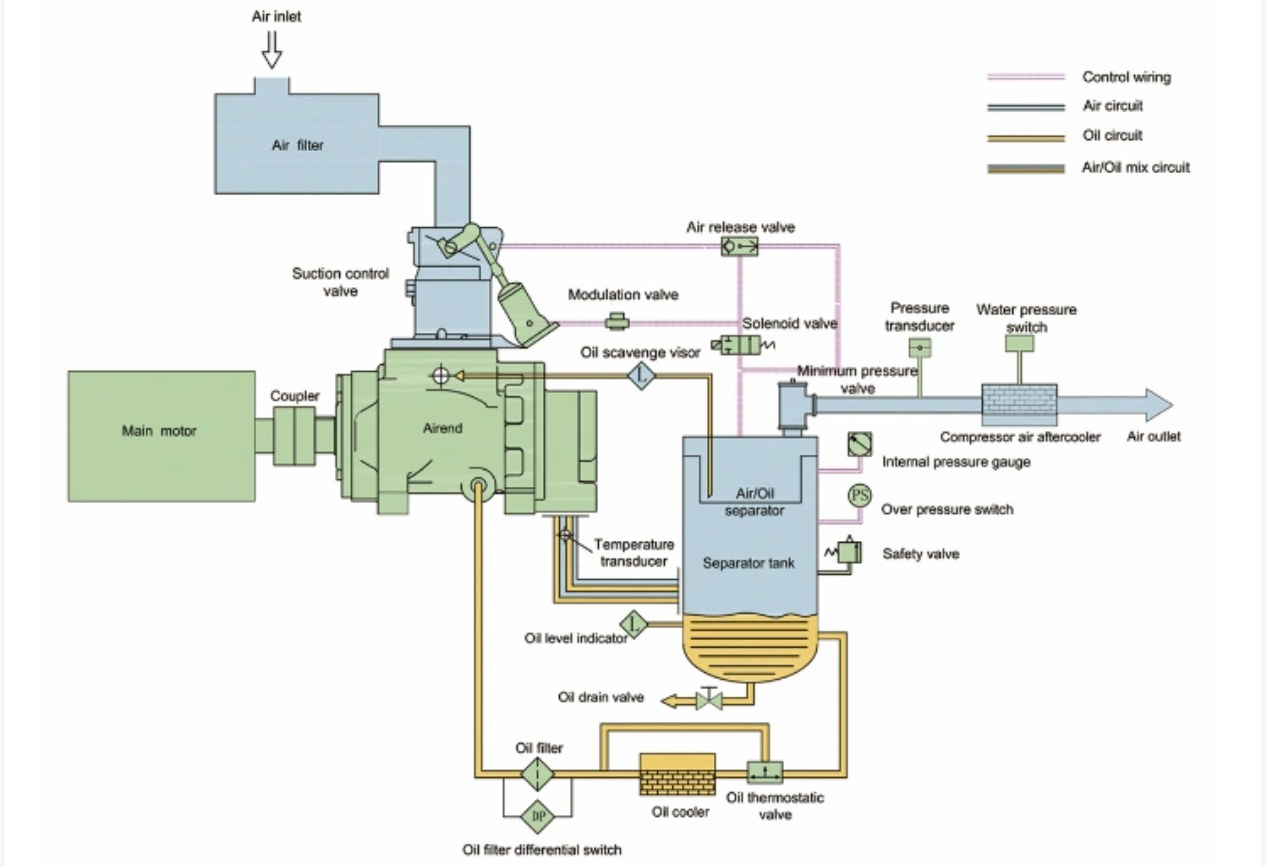

Compressor Flow Chart
Technical Data
| High Pressure Screw Air Compressor |
| Model | SE132W-30 | Note |
| Free air delivery (m3/min) | 10.5 | 370.65cfm |
| Max working pressure (bar) | 30 | 3.0Mpa |
| Power (kW) | 132 | 180hp |
| Voltage (V/P/Hz) | 380V/3P/50Hz | Voltage can be customized |
| Noise level dB(A) | 80 | |
| Cooling method | Water cooling | air cooling is optional |
| Drive method | Coupling | |
| Motor protection | IP55,F | |
| Suction air temperature (℃) | ≦50 | |
| Outlet temperature (℃) | Ambient Tem. + 8~10℃ | |
| Compressed air control method | Automatic(0-100%) | |
| Control method | PLC Intelligent | English |
| Oil content | 1~3ppm | |
| Connection (mm) | DN 50 | |
| Dimensions (L×W×H) mm | 3250*2250*2050 | |
| Weight (Kg) | 3200 | |
More Models
| MODEL | POWER | AIR FLOW m3/min | PRESSSURE bar | OUTLET CONNECTION | WEIGHT kg | DIMENSION L*W*H mm |
| kw | hp |
| SE90W-20 SE90W-25 | 90 | 120 | 9.2 8.5 | 20 25 | DN 40 | 2750 | 2466*1900*1918 |
| SE110W-20 SE110W-25 | 110 | 150 | 11.6 9.7 | 20 25 | DN 40 | 2900 | 2466*1900*1918 |
| SE132W-20 SE132W-25 SE132W-30 | 132 | 180 | 13.0 11.8 10.5 | 20 25 30 | DN 50 | 3200 | 2466*1900*1918 |
| SE160W-20 | 160 | 220 | 15.5 | 25 | DN 50 | 3850 | 2850*1950*1950 |
| SE200W-20 SE200W-25 | 200 | 270 | 21.0 18.8 | 20 25 | DN 65 | 4200 | 2980*2100*1950 |
| SE250W-20 SE250W-25 | 250 | 340 | 25.0 22.0 | 20 25 | DN 65 | 4500 | 3250*2250*2050 |
Note: the above listed are of our standard models. For different needs, the special design service is available. Welcome to pre-sales technical consultation at any time.
