270hp 200kw 400psi Medium Pressure Air Compressor

Product Categories
Goodseaa Aviation Technology(Shanghai) Co.,Ltd.
Contact Now

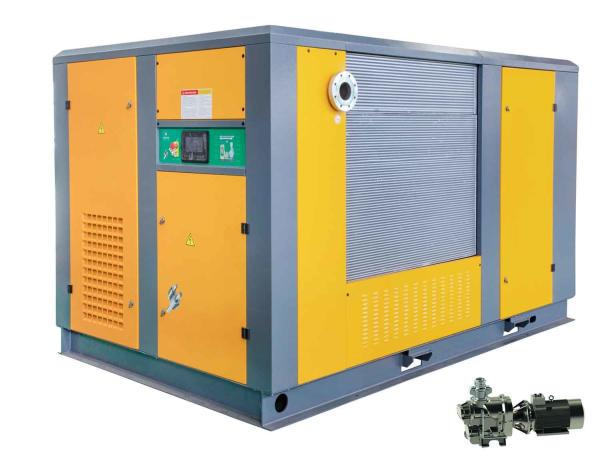

270hp 200kw 400psi Medium Pressure Air Compressor

  • 1
  • 2

Brand Name : GooDSeaA

Model Number : SE200A(W)-25

Certification : ISO,CE

Place of Origin : Shanghai, China

MOQ : 1pc

Price : USD75,000PC - USD78,500/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50pcs/month

Delivery Time : 35days -45days

Packaging Details : standard export carton box

Name : Medium-Pressure Air Compressor 400PSIG

Type : Middle Pressure

Compression Stage : Two Stage

Power : 200kw

Pressure : 25bar

Air Flow : 18.8m3/min

Cooling Method : Water Cooled (air cooled is optional)

Material : Cast Iron

Contact Now

270hp/200kw 25bar Medium-Pressure Air Compressor Packages 400psig

Technical Data

High Pressure Screw Air Compressor
Model SE200A(W)-25 Note
Free air delivery (m3/min) 18.8 663.6cfm
Max working pressure (bar) 25 2.5Mpa
Power (kW) 200 270hp
Voltage (V/P/Hz) 380V/3P/50Hz Voltage can be customized
Noise level dB(A) 80
Cooling method water cooled air cooled is optional
Drive method Coupling
Motor protection IP55,F
Suction air temperature (℃) ≦50
Outlet temperature (℃) Ambient Tem. + 8~10℃
Compressed air control method Automatic(0-100%)
Control method PLC Intelligent English
Oil content 1~3ppm
Connection (mm) DN 65
Dimensions (L×W×H) mm 2980*2100*1950
Weight (Kg) 4200

GooDSeaA high-pressure air compressor is from 90kw, with smarter compressor technology.Our high pressure air and gas compressors offer a unique range which serve a broad range of industries and applications. Available as air or water-cooled units, that can be supplied as standard configured sets or as custom engineered packages.

GooDSeaA Medium/High Pressure Air Compressor Configuration

270hp 200kw 400psi Medium Pressure Air Compressor

Air Compressor Flow Chart

270hp 200kw 400psi Medium Pressure Air Compressor

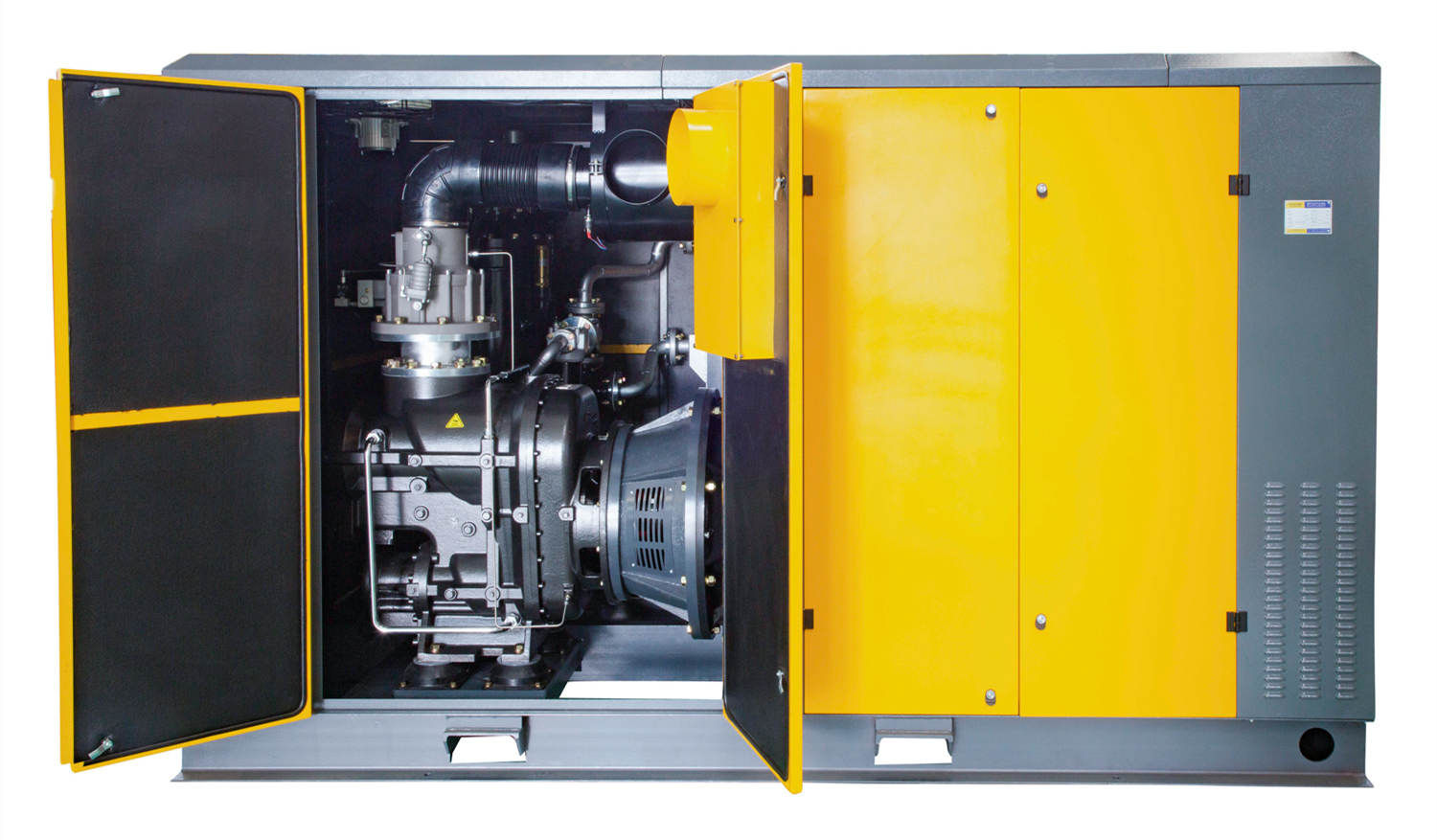

Inner Structure

270hp 200kw 400psi Medium Pressure Air Compressor

Applications of High-Pressure Air Compressor

*Oil Field Engine Starting

*Marine Engine Starting

*PET Bottle Blowing

*Valve Testing

*Leak Testing

*Pressure Testing

*Inert Gas Boosting

*Air Blast Circuit Breaking

*Aircraft Ground Support

*Pipeline Testing

More Models

MODEL POWER

AIR FLOW

m3/min

PRESSSURE

bar

OUTLET

CONNECTION

WEIGHT

kg

DIMENSION

L*W*H mm
kw hp

SE90W-20

SE90W-25

 90 120

9.2

8.5

20

25

 DN 40 2750 2466*1900*1918

SE110W-20

SE110W-25

 110 150

11.6

9.7

20

25

 DN 40 2900 2466*1900*1918

SE132W-20

SE132W-25

SE132W-30

 132 180

13.0

11.8

10.5

20

25

30

 DN 50 3200 2466*1900*1918
SE160W-20 160 220 15.5 25 DN 50 3850 2850*1950*1950

SE200W-20

SE200W-25

 200 270

21.0

18.8

20

25

 DN 65 4200 2980*2100*1950

SE250W-20

SE250W-25

 250 340

25.0

22.0

20

25

 DN 65 4500 3250*2250*2050

Note: the above listed are of our standard models. For different needs, the special design service is available. Welcome to pre-sales technical consultation at any time.
